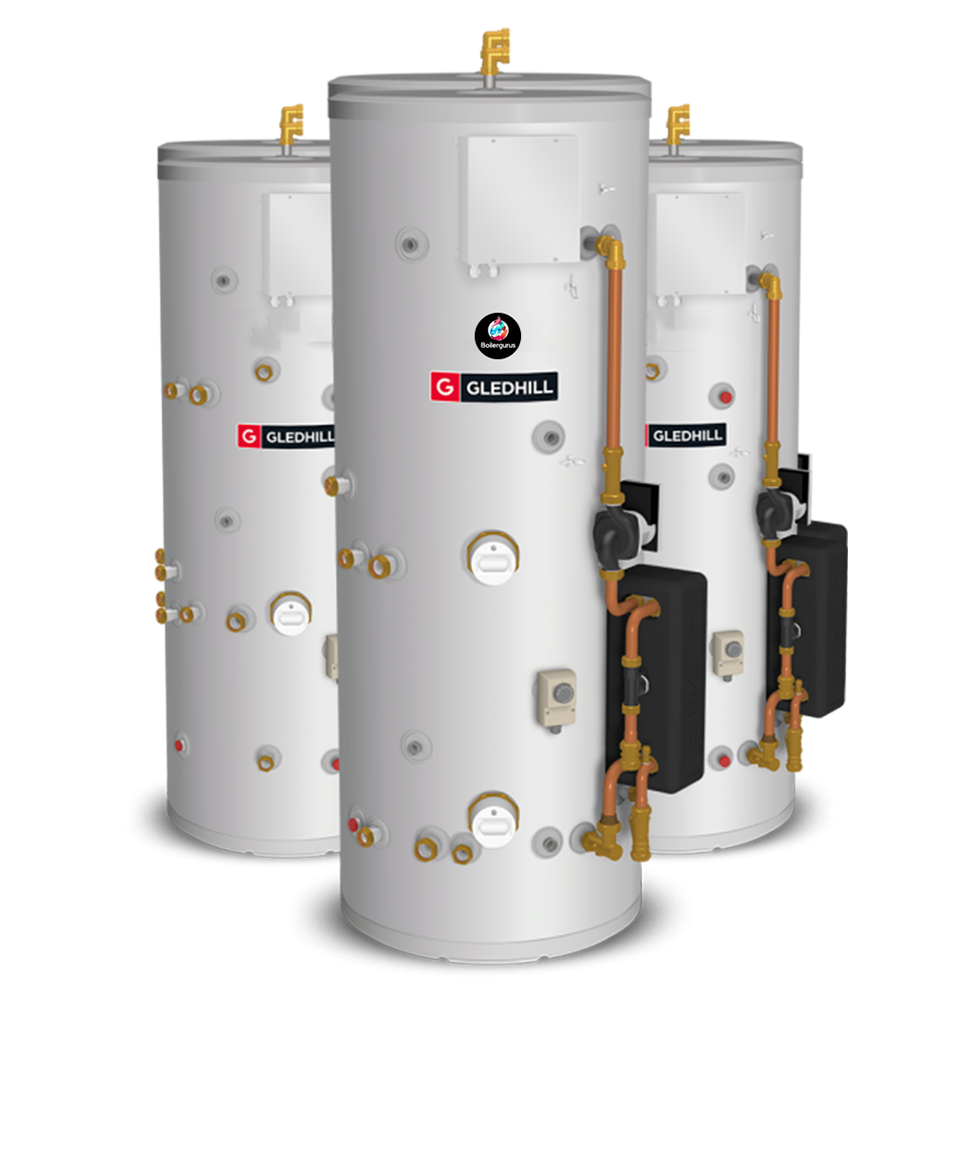

Hot Water Cylinder Installation, Repairs & Servicing

1. Building Regulations & Safety Compliance

Unvented cylinders must comply with Building Regulations Part G3, which mandates:

• Required safety components like expansion relief valves.
• Notification to local authorities for compliance.
• Installation by G3 certified professionals.

2. Safety Mechanisms & Failure Prevention

Unvented cylinders are equipped with multiple safety features that must be professionally installed to function correctly. These include:

• Temperature and pressure relief valves.
• Expansion vessels to manage pressure buildup.
• D1/D2 pipework to safely discharge excess pressure.

3. Causes of Unvented Cylinder Failures

Even the best brand of cylinder will fail if safety measures are compromised. Common causes include:

• Blocked or faulty pressure relief valves.
• Poor installation without key safety features.
• Lack of maintenance leading to unnoticed issues.

4. Loft Installations: Structural and Material Considerations

Unvented cylinders can be installed in lofts, but specific structural and technical requirements must be met to ensure long-term safety and performance:

• The loft structure must be assessed to confirm it can support the full weight of the cylinder when filled with water.
• A purpose-built supporting platform must be installed to safely distribute the weight.
• Adequate head height must be available for safe installation, future servicing, and pressure relief valve access.
• All pipework must be fully lagged and insulated to prevent freezing, which can cause pipes to split or crack and lead to serious leaks under high pressure.
• Only the highest quality fittings should be used, as freezing in lofts increases the risk of cracked or failed components.
• Pipework should minimise joints wherever possible, using copper pipe bends instead of fittings to reduce weak points.
• All pipework materials must be suitable for high pressure and temperature fluctuations typically found in loft environments.

Failure to properly assess and prepare for these factors can result in structural damage, collapsed flooring, or severe water leaks caused by split pipes during cold weather.

5. Correct D1 and D2 Discharge Pipework

The D1 and D2 discharge system plays a crucial role in cylinder safety. Incorrect installation may lead to:

• Pressure buildup inside the cylinder.
• Failure of temperature relief mechanisms
• Blocked, restricted or lack of discharge, causing pressure explosions.

6. Regular Servicing & Long Term System Integrity

Even a perfectly installed unvented cylinder requires regular servicing to maintain efficiency and safety. A well maintained system ensures:

• All safety features are functioning correctly.
• Balanced pressure and temperature regulation.
• Compliance with ongoing G3 regulations.
